Pipe lining is a process for repairing damaged or broken pipes. It can be either a permanent or temporary solution. Trenchless pipe lining can be a better solution for some pipes because it is more durable and can last up to 50 years. It can also be used to repair areas where there is no pipe – that’s what a pipe lining company is for.


Cured-in-Place Piping (CIPP) pipe lining involves installing a polymer liner inside a pipe. The process can involve an inversion process or a winch. During the installation process, hot water or steam is injected into the pipe to expand the liner and create a barrier between it and the surrounding pipe. Afterward, the liner is cooled slowly so as to prevent it from shrinking.

CIPP is a cost-effective, no-dig alternative to traditional sewer line replacement. This process can significantly reduce leaks and infiltration in the pipeline without disrupting property. CIPP is not a permanent fix. However, it can extend the service life of the pipeline and reduce repair costs.

This pipe lining process is not without its risks. When installed improperly, CIPP installations can emit chemicals into the air. These volatile organic compounds can cause health problems. Those who perform CIPP installations should wear protective equipment to avoid exposure to these chemicals. Some chemicals used in the process include acetophenone, benzoic acid, and benzaldehyde.

CIPP can also be used to repair existing pipes. It can line circular or non-circular pipes, egg-shaped pipes, ovoids, and box culverts. Before starting the installation, the pipe must be unplugged, and bypass pumping may be necessary.

Polyester resin

Polyester resin pipe lining is the most affordable type of pipe lining and is often used on large municipal plumbing projects. It is flexible, heat and chemical-resistant, and can be combined with other materials, such as carbon fibers, glass fibers, or plastic fibers. It is also used in a variety of products, including construction materials, luggage, and appliances. While polyester resin is inexpensive, it has certain disadvantages. It is susceptible to warping and shrinking, which can pose a problem if not calculated properly.

Polyester resin pipe lining has high external bands (EBs), and glass fibers improve their constructability by increasing the liner’s thickness. To test the durability of the lining, the samples with glass fibers and felt showed the highest EB values. They also demonstrated good constructability. This type of lining is particularly good for repairing deteriorating pipe systems.

A disadvantage of epoxy resin is that it cannot be pre-mixed or soaked in advance. Since it is a brittle material, it can crack under pressure or delaminate from the pipe it’s installed in. Additionally, epoxy resins can be expensive, and application can take several days.

Cured-in-place pipe

Cured-in-place pipe lining is a flexible and reliable method of relining damaged pipes. It can be used in a variety of pipe sizes, from small-diameter pipes of less than six inches to large-scale system repair installations of over 2,000 feet. The main benefit of this method is that it provides structural pipe relining inside the existing pipe, which can extend its life expectancy by up to 50 years.

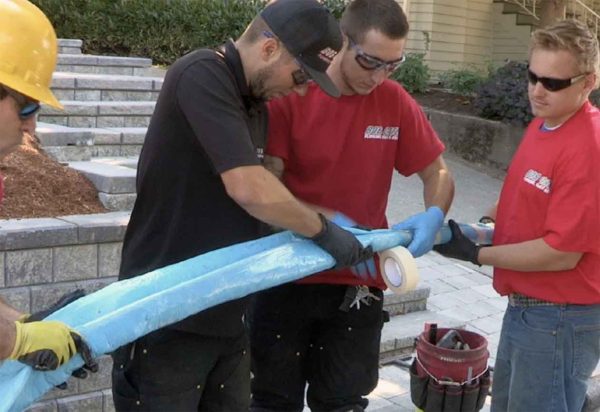

The process involves inserting a felt tube made from saturated resin into a pipe and then coating the tube with a polyurethane coating. The mixture then cures under the pressure of air or water. The resulting pipe wall becomes smooth and corrosion-resistant. CIPP also eliminates the need for lateral connections and requires only one insertion pit.

Another advantage of CIPP is that it is an efficient and low-maintenance method. It can be used on a variety of types of pipes, including storm water and sanitary sewers. It is also useful on low-pressure process lines and force mains. Since the CIPP process is less invasive than trench replacement, it is becoming a popular method for repairing deteriorated pipes.

Cured-in-place pipe lining is a trenchless, seamless method of pipe rehabilitation. It can be used to repair water, sewer, gas, and chemical pipelines. It also has the advantage of preserving the host pipeline and causing minimal property damage. Cured-in-place pipe lining can increase a pipe’s lifespan by up to 100 years.
